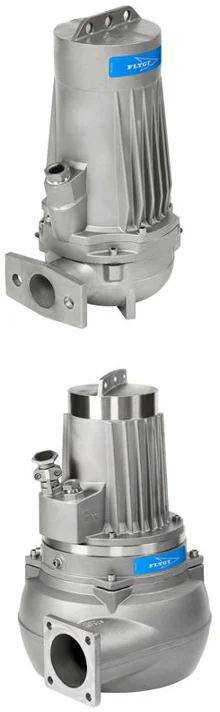

Flygt D8050 Specifications

3069 3085 3102 3127
The Flygt D8050 Stainless Steel Vortex pumps are designed for use in liquids with pH values ​​ranging from 2 to 10. The vortex impeller creates a large free passage, making clogging a thing of the past. The vortex created by agitating the liquid also ensures that solid particles virtually never come into contact with the impeller, minimizing wear from abrasive particles. The exceptionally well-balanced impeller ensures that the construction is not subjected to heavy loads, resulting in minimal maintenance. The Flygt D8050 is available in an LT low-pressure version, an MT medium-pressure version, and an HT high-pressure version. Contact us for the supply of this extensive range of pumps or for original parts.

Below are all available datasheets with curves and technical specifications for the Flygt D8050, in versions with a low-pressure impeller (LT), medium-pressure impeller (MT), and high-pressure impeller (HT). These pumps achieve a maximum capacity of approximately 80 m³/h and a maximum head of approximately 20 m³. Installed power ranges from 1.5 to 2.6 kW and discharge connections of 50 mm (2"), 65 mm (2.5"), and 100 mm (4").

 All Datasheets, Manuals and Parts Lists for the RVS Flygt D8050n waaierpomp

D8050 LT
low pressure version
D8050 MT
medium pressure version
D8050 HT
high pressure version
DP8050w422-2.2kW DP8050w442-2.2kW DP8050w262-2.6kW
DS8050w422-2.2kW DS8050w442-2.2kW DS8050w262-2.6kW
DP8050w424-2.2kW DP8050w444-2.2kW DP8050w264-2.2kW
DS8050w424-2.2kW DS8050w444-2.2kW DS8050w264-2.2kW
DP8050w426-1.5kW DP8050w446-1.5kW DP8050w264-2.6kW
DS8050w426-1.5kW DS8050w446-1.5kW DS8050w264-2.6kW
DP8050w426-2.2kW DP8050w446-2.2kW DP8050w266-2.2kW
DS8050w426-2.2kW DS8050w446-2.2kW DS8050w266-2.2kW
DP8050w428-1.5kW DP8050w448-1.5kW DP8050w266-2.6kW
DS8050w428-1.5kW DS8050w448-1.5kW DS8050w266-2.6kW
DP8050w428-2.2kW DP8050w448-2.2kW DP8050w268-1.5kW
DS8050w428-2.2kW DS8050w448-2.2kW DS8050w268-1.5kW
DP8050w430-1.5kW DP8050w450-1.5kW DP8050w268-2.2kW
DS8050w430-1.5kW DS8050w450-1.5kW DS8050w268-2.2kW
DP8050w430-2.2kW  DP8050w450-2.2kW DP8050w268-2.6kW
DS8050w430-2.2kW  DS8050w450-2.2kW DS8050w268-2.6kW
 To Manuals To Manuals  DP8050w270-1.5kW
 & parts lists & parts lists  DS8050w270-1.5kW
    DP8050w270-2.2kW
    DS8050w270-2.2kW
    DP8050w270-2.6kW
    DS8050w270-2.6kW
    DP8050w272-1.5kW
    DS8050w272-1.5kW
    DP8050w272-2.2kW
    DS8050w272-2.2kW
    DP8050w272-2.6kW
    DS8050w272-2.6kW
     To Manuals
    & parts lists

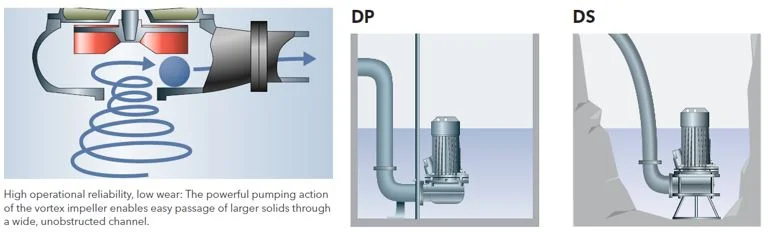

 Installation: DP pump placed on foot bend via guide tubes, DS pump freestanding with mounting plate and 90° press bend
opstelling overzicht
